High Quality Machine

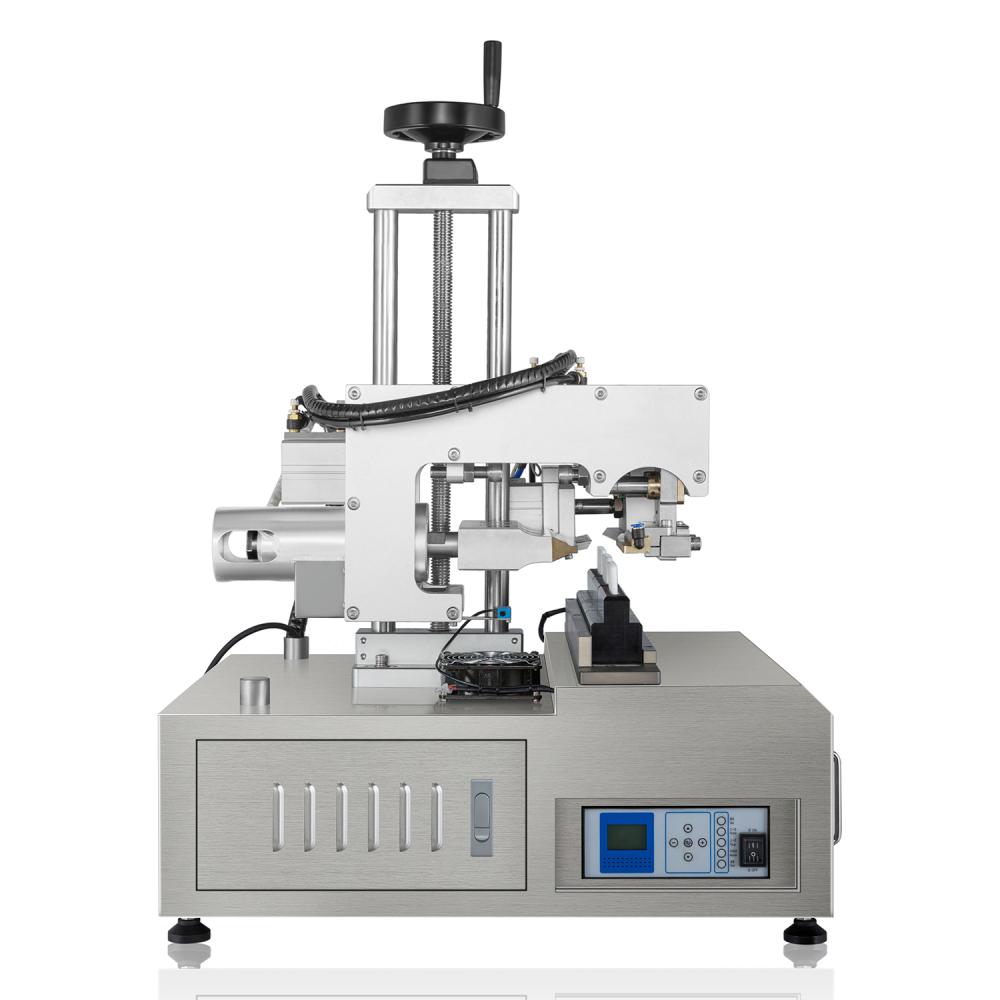

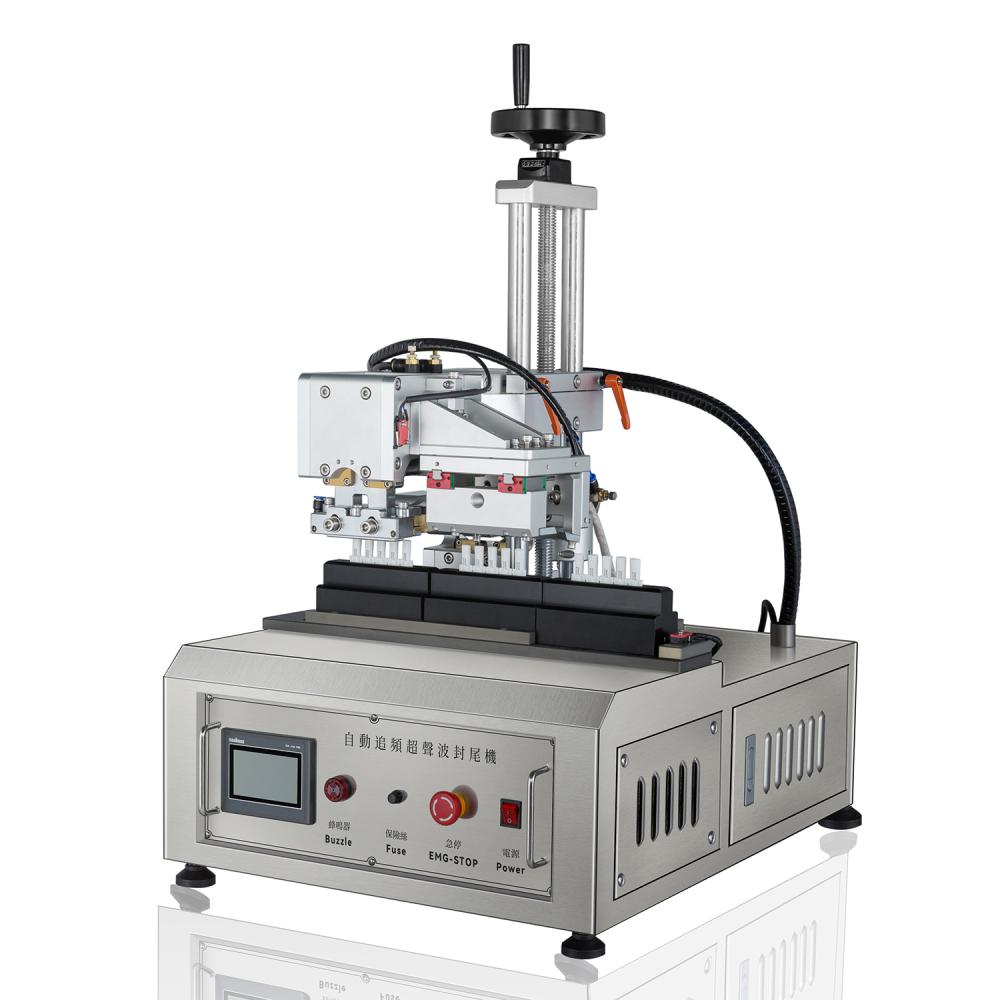

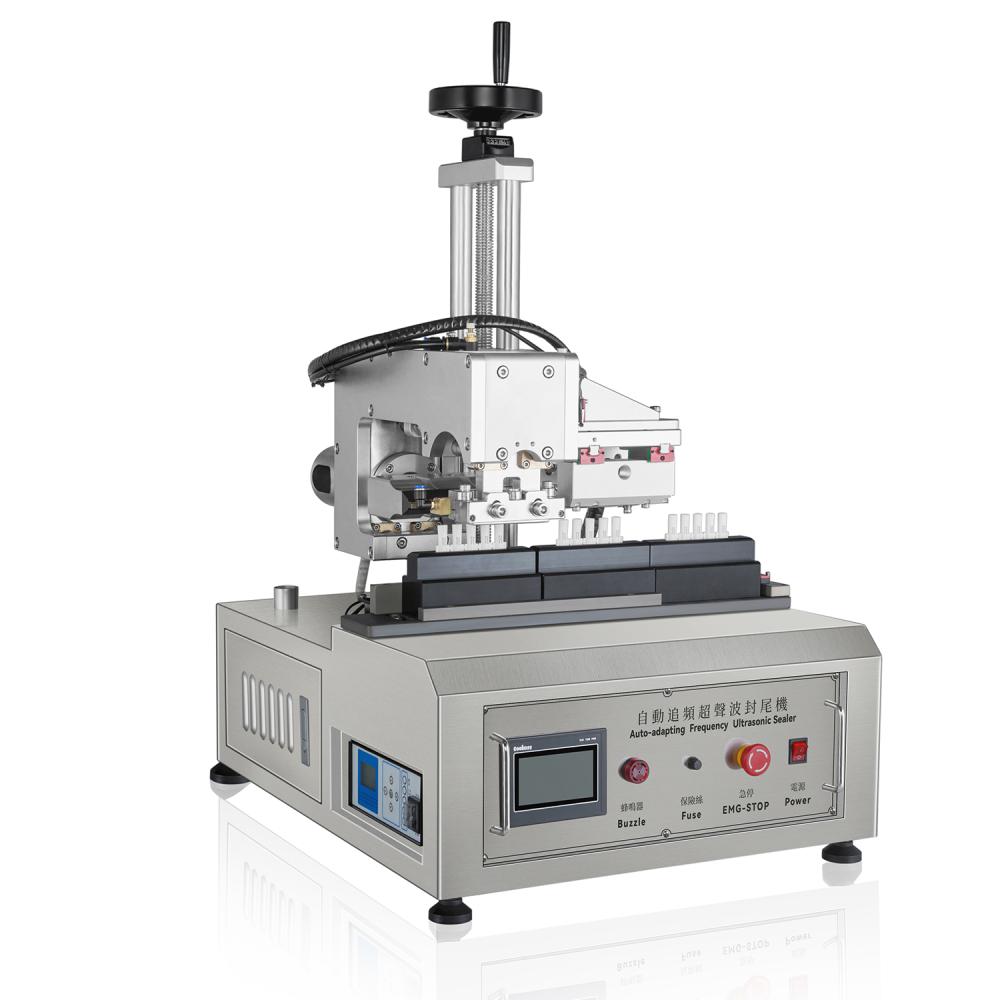

002 Semi-automatic tail sealing machine
SKU:
BRAND: Cyril Machine
Quantity: 99
Utilizing the energyproduced by c high-speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding, under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last .
One-year after-sales service guarantee
Factory direct sales, multiple transportation methods
Description:
Description:
Utilizing the energyproduced by c high-speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding, under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last .
Features:
1. Economic: the machine reduces the redundant functions, only retains the most core sealing and trimming functions, striving to achieve the highest efficiency with the lowest price.
2. End sealing and edge cutting: ultrasonic device on the left and sealing and trimming device on the right. The tool head can be customized according to customer requirements.
3. Stability: the power source of this machine is pneumatic. It works smoothly and is not easy to be damaged.
Product Parameters:
Power supply | AC220V/50Hz or 110v/60Hz | ||
Ultrasonic power | 1500W | ||
Frequency | 20KHZ | ||
Tube length | 50-250mm | ||
Tube diameter | 10-50 mm | ||
H.S Code | 8515800090 | ||
N.W/GW | 120KGS/150KGS | ||
Pack size | 550×650×1000mm(0.54CBM) | ||
